    What is the density matrix of a GHZ gate?

  • Members 19 posts
    Oct. 18, 2021, 8:29 a.m.

    By definition, the GHZ state is

    $$
    \ket{GHZ} \equiv \frac{1}{\sqrt{2}} (\ket{000}+\ket{111}),
    $$
    so the density matrix is
    $$
    \rho_{GHZ} = \ket{GHZ} \bra{GHZ} = \frac{1}{2} (\ket{000}\bra{000}+\ket{111}\bra{000}+\ket{000}\bra{111}+\ket{111}\bra{111}).
    $$

    You can check this in qiskit as well:

    from qiskit import QuantumCircuit
    from qiskit.quantum_info import DensityMatrix
    from qiskit.visualization import plot_state_city

    # Define a quantum circuit with the GHZ gate
    ghz = QuantumCircuit(3)
    ghz.h(0)
    ghz.cx(0,1)
    ghz.cx(0,2)

    # Translate GHZ circuit into density matrix
    ghz_state = DensityMatrix.from_instruction(ghz)

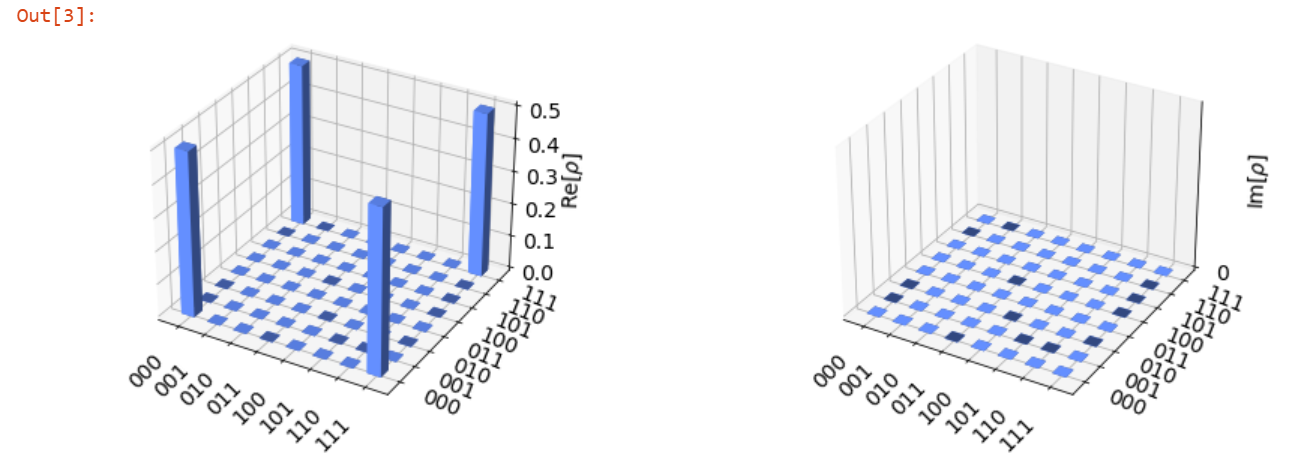

    # Plot the GHZ density matrix
    plot_state_city(ghz_state)




    PNG, 244.5 KB, uploaded by JXW on Oct. 18, 2021.
